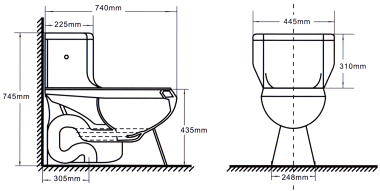

 Dimension: |
Notes: |
 |
- This Toilet is Designed to Rough-In Dimension
of 12" From Finished wall to C/L of outlet.
- Dimension Shown for location of Supply is
Suggested.
|
|
|
| Superior Flush Performance |
INSPECTION
ITEMS |
Test Result |
| Rim Wash |
Pass |
| Solid Ball Test |
100 |
100 |
100 |
| Blue America Standard ball |
3 |
3 |
3 |
| Trap way Diameter |
48mm/50.8mm |
| Messo Paster(650g) |
650g |
| Water consumption |
6.0L |
| 3 Flush Without Media |
Pass |
| Cheesecloth |
Pass |
| Trap Seal Restoration |
68mm |
| Restoration Area |
285x220mm |
|
| Compliance
Certifications-Meets or exceeds the following specification: |
- Meets
ASME A112.19.2M for Vitreous China Fixtures-includes
flush performance, ball pass diameter, trap seal depth
and all dimensions.
|
