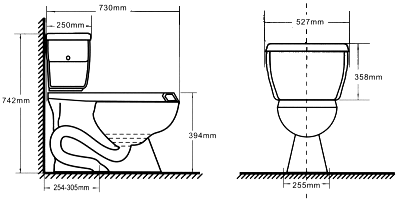

 Dimension: |
Notes: |
 |
- This Toilet is Designed to Round-In at adjustable
Dimension of 10"~12" From Finished
wall to C/L of outlet.
- Dimension Shown for location of Supply is
Suggested.
|
|
|
| Superior Flush Performance |
INSPECTION
ITEMS |
Test
Result |
Rim Wash |
Pass |
Solid Ball Test |
95 |
95 |
95 |
Blue America Standard ball |
2 |
2 |
2 |
Trap way Diameter |
48mm/50.8mm |
Messo Paster (350g) |
350g |
Water consumption |
6.0L |
3 Flush Without Media |
Pass |
Cheesecloth |
Pass |
Trap Seal Restoration |
50mm |
Restoration Area |
152x203mm |
|
| Compliance
Certifications-Meets or exceeds the following specification: |
- Meets
ASME A112.19.2M for Vitreous China Fixtures-includes
flush performance, ball pass diameter, trap seal depth
and all dimensions.
|
